RAL7 CRV46156
RCA Radiomarine Products Department; Camden (NJ)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA Radiomarine Products Department; Camden (NJ)
- Year
- 1937 ??
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 116662
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- TRF with regeneration; 2 AF stage(s)
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Line / Batteries (any type) / DC 6.3; 150 / AC 115 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: RAL7 CRV46156 - RCA Radiomarine Products
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 460 x 338 x 460 mm / 18.1 x 13.3 x 18.1 inch
- Notes
- Belongs to the pre WW2 Navy receiver series RAL 1 to 9.
9 bands 0.3 - 23 MHz. AVC amplified. A1/A3. Low pass filter switchable for A3.
A1 filter switchable (450 - 1350 Hz).
Separate power supply for mains operation.
- Net weight (2.2 lb = 1 kg)
- 33.6 kg / 74 lb 0.1 oz (74.009 lb)
- Source of data

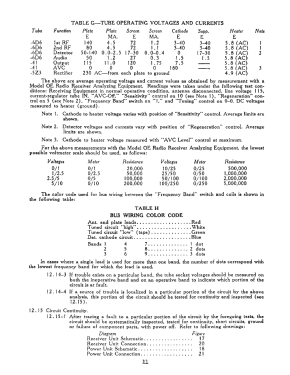

- -- Original-techn. papers.
