• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1946 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 81375

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6J7 6J7 6L6 5Y3G

• Main principle
• Audio-Amplification; 3 AF stage(s)

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Power out
• 6 W (12 W max.)

• Material
• Metal case

• from Radiomuseum.org

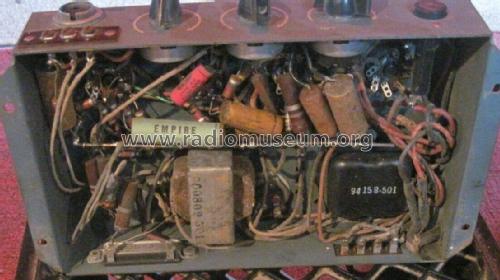

• Model: Power Amplifier MI-12236 - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Notes

• PA amplifier; inputs: Microphone and Phonograph.

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
