PD-24 Ch= RS-178
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1959
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 78798
-
- alternative name: RCA Manufacturing || Victor Talking Machine

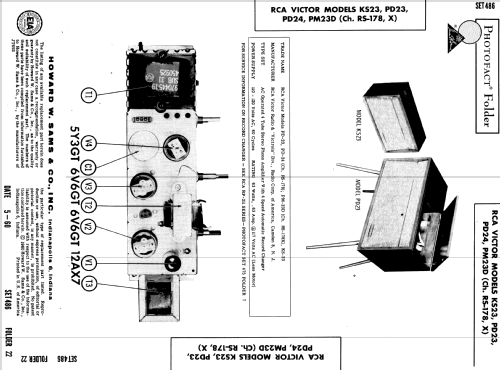

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- 4 Loudspeakers
- from Radiomuseum.org
- Model: PD-24 Ch= RS-178 - RCA RCA Victor Co. Inc.; New
- Notes
- The left channel speaker is an external "Companion Speaker Unit, Model KS-23". Sams photofact set 486 folder 22 date 5-60 features the RCA models PD23, PD24 and PM23D as the same schematic.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 20, 1960
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 486 folder 22 date 5-60)
- Author
- Model page created by Trev Levick. See "Data change" for further contributors.
