PF-26 Ch= RS-182
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1959 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 78823
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Sams photofact.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: PF-26 Ch= RS-182 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Notes

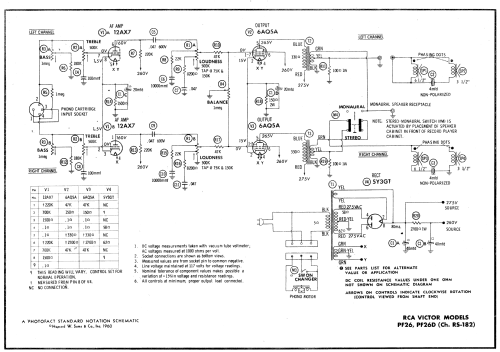

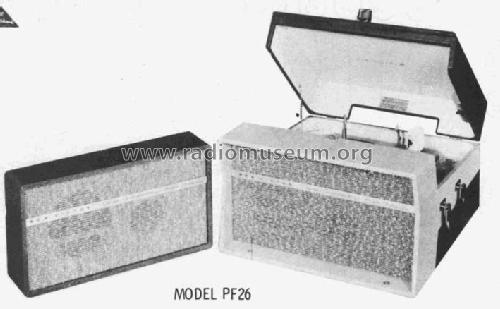

- AC operated stereo phono amplifier with 4 speed automatic record changer. Sams photofact set 483 folder 13 date 5-60 features the RCA models PF26 and PF26D as the same schematic.
- Circuit diagram reference

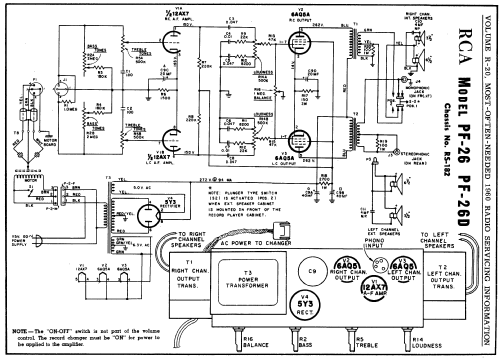

- Beitman Radio Diagrams Vol. 20, 1960
- Literature/Schematics (1)

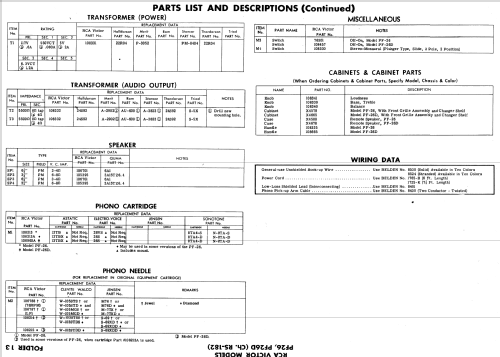

- Photofact Folder, Howard W. SAMS (Set 483 folder 13 date 5-60)
- Author
- Model page created by Trev Levick. See "Data change" for further contributors.
