Portable Television 14-S-7070U Ch= KCS102D
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 272545
-
- alternative name: RCA Manufacturing || Victor Talking Machine

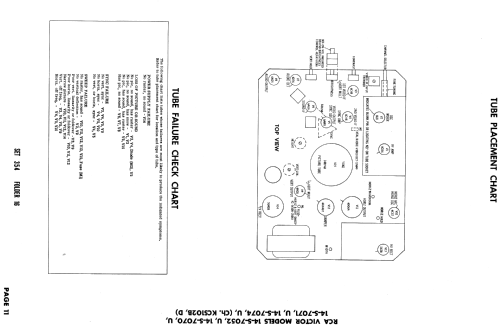

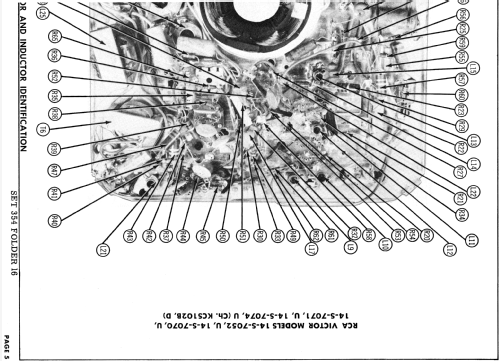

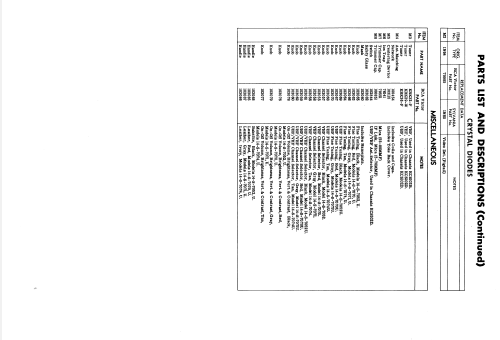

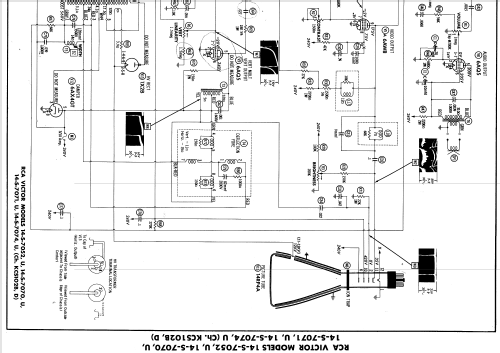

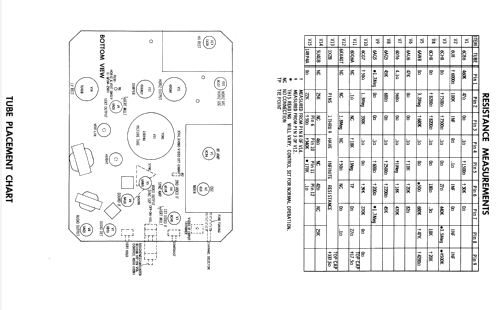

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- 6BQ7A 6X8 6AF4 or 6AF4A 6CH8 6CH8 6AW8 6AU6 6DT8 6AQ5 6AQ5 6CG7 6DQ6A 6AX4GT 1X2B 5U4GB 14RP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- from Radiomuseum.org
- Model: Portable Television 14-S-7070U Ch= KCS102D - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The RCA 14-S-7070U is a 14" B/W TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis KCS102D and picture tube 14RP4A.
- Mentioned in
- Photofact Folder, Howard W. SAMS (Set 354, Folder 16, Date 4-57)
- Author
- Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
- Other Models
-
Here you find 5131 models, 3234 with images and 4167 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
