Portable Television 14-S-7074 Ch= KCS102B

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1957 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 272547

• • alternative name: RCA Manufacturing || Victor Talking Machine

• Picture
• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• 6CB6 6U8 6CH8 6CH8 6AW8 6AU6 6DT8 6AQ5 6AQ5 6CG7 6DQ6A 6AX4GT 1X2B 5U4GB 14RP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• from Radiomuseum.org
• Model: Portable Television 14-S-7074 Ch= KCS102B - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Notes

• The RCA 14-S-7074 is a 14" B/W TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis KCS102B and picture tube 14RP4A.

• Mentioned in

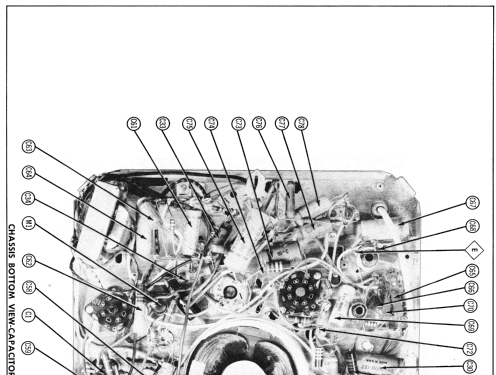

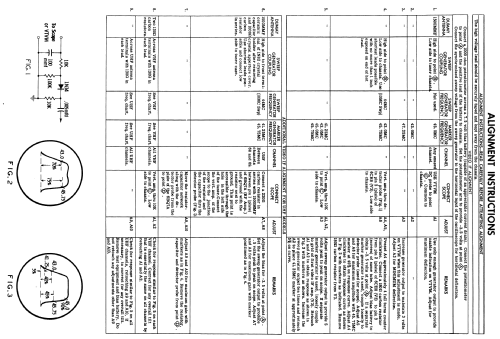

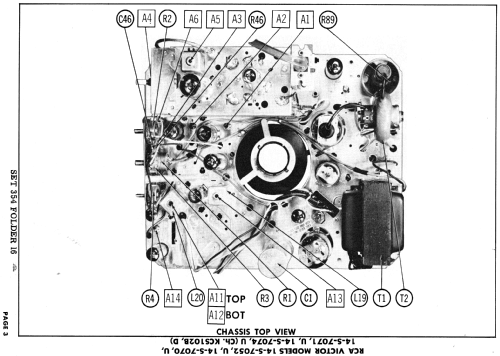

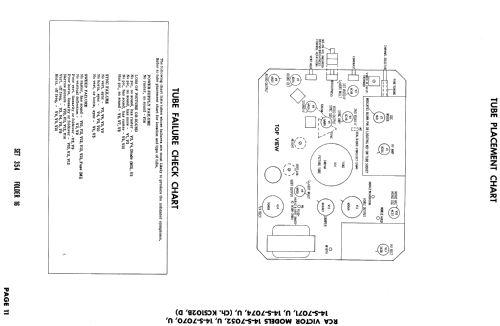

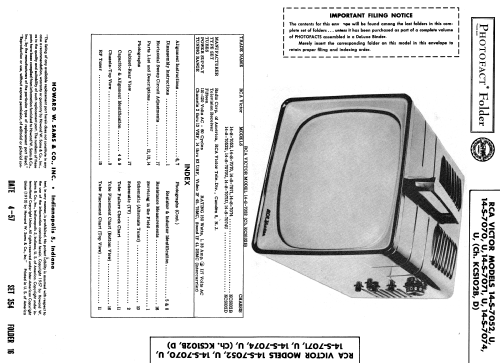

• Photofact Folder, Howard W. SAMS (Set 354, Folder 16, Date 4-57)

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
