- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1938
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 107282
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- 5W4
- Wave bands
- - without
- Power type and voltage
- Direct Current supply (DC) / 105-125; 210-250 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org

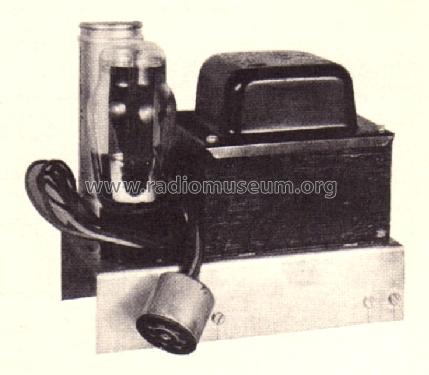

- Model: PSU 8E - RCA RCA Victor Co. Inc.; New
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 12.5 x 8.5 x 5.25 inch / 318 x 216 x 133 mm
- Notes
- DC-mains Power Supply using a Vibrator. Used with Models 8Q1 and 8Q4.

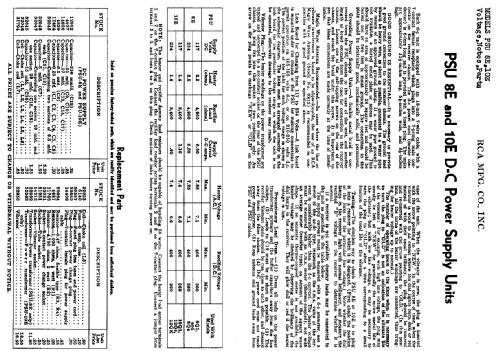

- Literature/Schematics (1)
- RCA Victor Service Notes for 1938
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
