QB11 Ch= RC-529A
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1948 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 134001
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Data taken from RCA datasheet

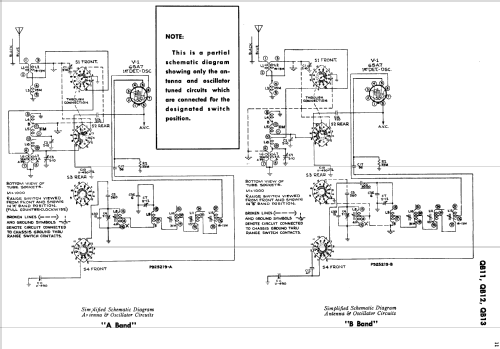

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
- Power out
- 3.1 W (unknown quality)
- from Radiomuseum.org
- Model: QB11 Ch= RC-529A - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 17.125 x 10.625 x 7.5 inch / 435 x 270 x 191 mm
- Notes
- Farm radio; wavebands: BC, 4xSW; Synchronous vibrator power supply RS115.
- Net weight (2.2 lb = 1 kg)
- 21.5 lb (21 lb 8 oz) / 9.761 kg
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Literature/Schematics (1)
- RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data 1943-1946, Page 7)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
