QB12 Ch= RC-529A
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1946 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 207599
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Data taken from RCA Datasheet

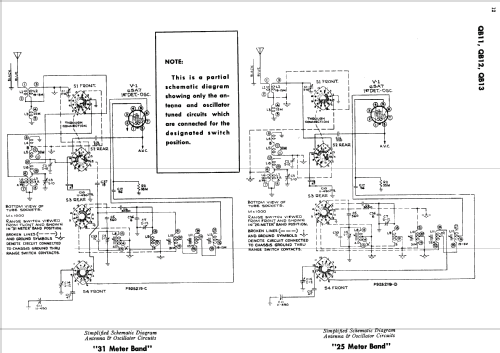

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6.3 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
- Power out
- 3.1 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: QB12 Ch= RC-529A - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 16.25 x 10.87 x 7.125 inch / 413 x 276 x 181 mm
- Notes
- Farm radio; wavebands: BC, 4 x SW; Synchronous vibrator power supply RS115.
- Net weight (2.2 lb = 1 kg)
- 20 lb (20 lb 0 oz) / 9.080 kg
- Source of data
- RCA Victor Service Notes "Red Book" Series
- Literature/Schematics (1)
- RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data 1943-1946, Page 7)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
