• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 54540

• • alternative name: RCA Manufacturing || Victor Talking Machine

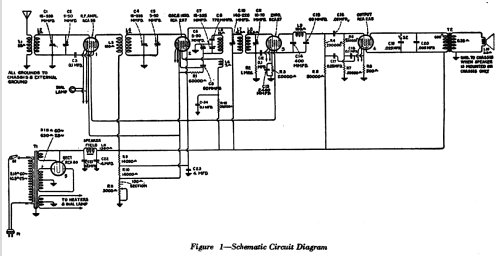

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 58 2A7 57 2A5 80

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 1.75 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

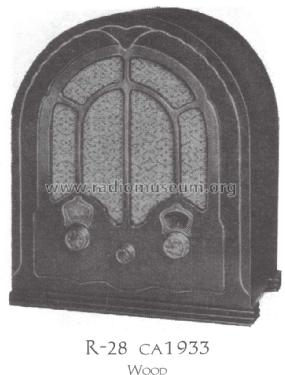

• Model: R-28 Ch= R-28 [Cathedral, 1 band] - RCA RCA Victor Co. Inc.; New

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 11 x 14 x 7 inch / 279 x 356 x 178 mm

• Notes

• Model R-28 of the R-28 series. Advertised as Model 28 or R-28, there are two versions of this radio, one with Police band (R-28-P) and one without (this model).

  The models of this series have a sticker in the cabinet for Model R-28, plus a sticker on the chassis Model R-28 or Model R-28-P.

  In advertising and folders, the models were further divided, e.g. Model R-28F for the Duncan Phyfe table etc. There suffixes however do not appear on the actual radio - as far as we know.

• Price in first year of sale
• 20.00 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• RCA Victor Service Notes "Red Book" Series

• Literature/Schematics (2)
• Machine Age to Jet Age II (page 243.)

• Literature/Schematics (3)
• Cathedral & Tombstone Radios (page 222.)
