• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1931

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 54558

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 35 24 27 35 35 27 47 47 80 27

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz

• Tuned circuits
• 10 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Victor Radiola R-50 - RCA RCA Victor Co. Inc.; New

• Shape

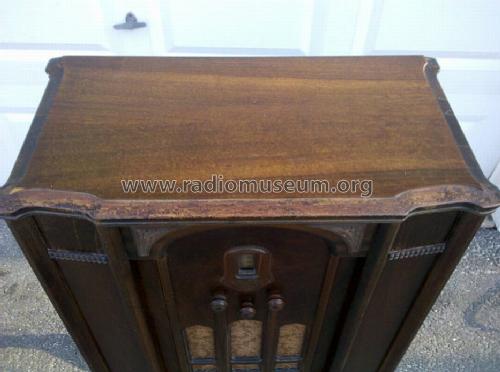

• Console, Lowboy (legs < 50 %).

• Notes
• 4 legged lowboy with stretcher base.
  Push-pull audio amplifier.

• Price in first year of sale
• 157.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)

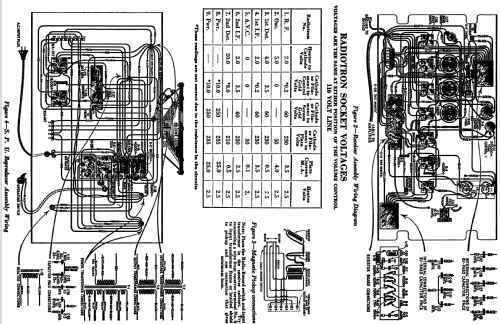

• RCA Victor Service Notes "Red Book" Series

• Literature/Schematics (2)
• Pre-War Consoles
