R65BR9 Ch= RC-1045
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1947 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 208063
-
- alternative name: RCA Manufacturing || Victor Talking Machine

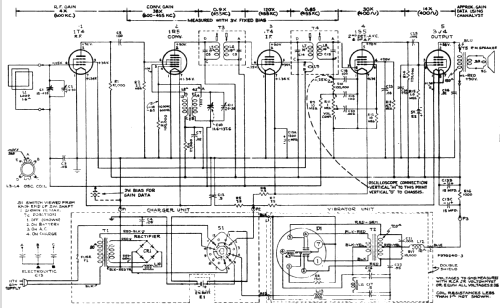

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / AC/DC 105-125/2 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 0.23 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: R65BR9 Ch= RC-1045 - RCA RCA Victor Co. Inc.; New
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 14 x 10.5 x 5 inch / 356 x 267 x 127 mm
- Notes
- Leatherette. Built in 2 volt storage battery. Vibrator for +B. Battery charger.
Service data on RCA model 65BR9 applies to this model with the exception that the metal monogram is not used on this model.
- Source of data
- RCA Victor Service Notes "Red Book" Series
- Literature/Schematics (1)
- Rider's Perpetual, Volume 17 = covering 1947
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
