- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1932/1933
![perfect model](/img/sternRot.gif)
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 54582
-
- alternative name: RCA Manufacturing || Victor Talking Machine

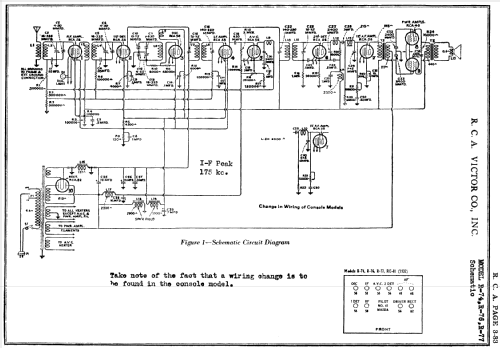

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 7 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: R76 - RCA RCA Victor Co. Inc.; New
- Shape
- Console, Highboy (legs > 50 %).
- Dimensions (WHD)
- 23.625 x 40 x 12.25 inch / 600 x 1016 x 311 mm
- Notes
- The RCA model R76 is a 4 legged lowboy with stretcher base. Information from Alan Douglas for this model: "According to the "Red Book", the RCA service manual 1931/32, this RCA model R-76 had a market introduction June 1932 with a list price of $ 93.50 and it was announced to dealers July 11, 1932. Date of sample and stock shipments was July 15, 1932. This model was sold 4498 times."
- Net weight (2.2 lb = 1 kg)
- 71 lb (71 lb 0 oz) / 32.234 kg
- Price in first year of sale
- 93.50 $
- External source of data
- Ernst Erb
- Source of data
- Pre-War Consoles
- Circuit diagram reference
- Rider's Perpetual, Volume 3 = 1933 and before
- Literature/Schematics (1)
- Collector's Guide to Antique Radios (6th edition)
- Literature/Schematics (2)
- RCA Victor Service Notes "Red Book" Series
