R-99 Dynamic Expander
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1936
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 54615
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Power out
- 12 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: R-99 Dynamic Expander - RCA RCA Victor Co. Inc.; New
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 25 x 34 x 14 inch / 635 x 864 x 356 mm
- Notes
- Phonograph with dynamic expander.
Stein PWC notes a radio, but Riders schematic clearly shows none.
- Net weight (2.2 lb = 1 kg)
- 112 lb (112 lb 0 oz) / 50.848 kg
- Price in first year of sale
- 150.00 USD
- External source of data
- Ernst Erb

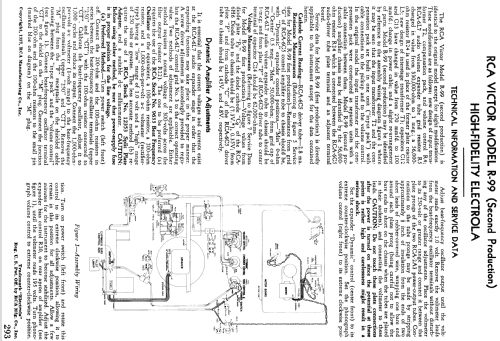

- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Mentioned in
- Pre-War Consoles
- Literature/Schematics (1)

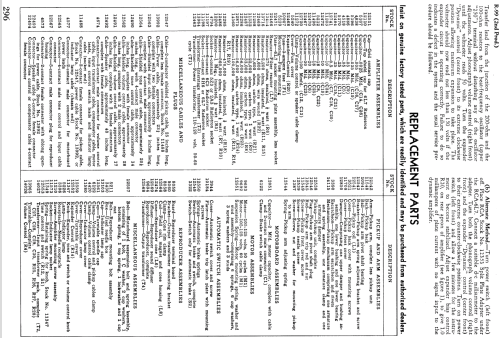

- RCA Victor Service Notes "Red Book" Series
