• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 243057

• • alternative name: RCA Manufacturing || Victor Talking Machine

• Number of Tubes
• 5

• Valves / Tubes
• 58 2A7 57 2A5 80

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 1.75 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

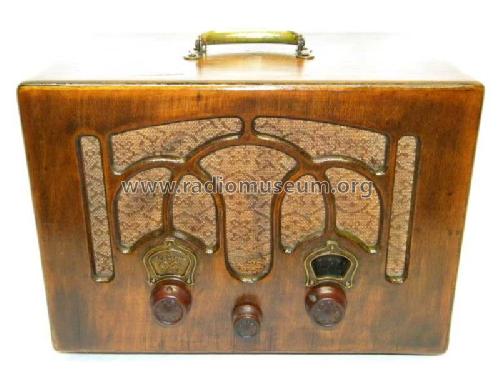

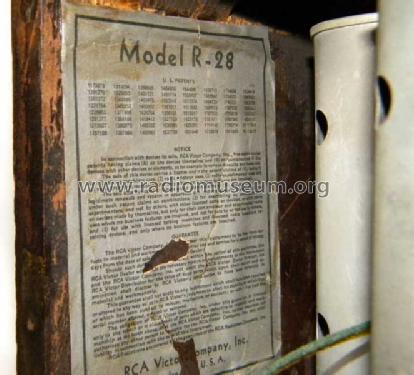

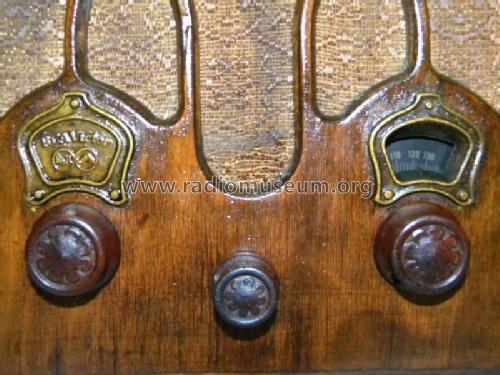

• Model: R-28 Carryette Ch= R-28 [top handle, 1 band] - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Circuit diagram reference
• Rider's Perpetual, Volume 5 = ca. 1934 and before

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
