R-28C Ch= R-28 Chest, 1 band

RCA (RCA Victor Co. Inc.); New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1933
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 243056
    • alternative name: RCA Manufacturing || Victor Talking Machine

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superhet with RF-stage; ZF/IF 175 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1.75 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: R-28C Ch= R-28 [Chest, 1 band] - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 400 x 240 x 200 mm / 15.7 x 9.4 x 7.9 inch
  • Notes

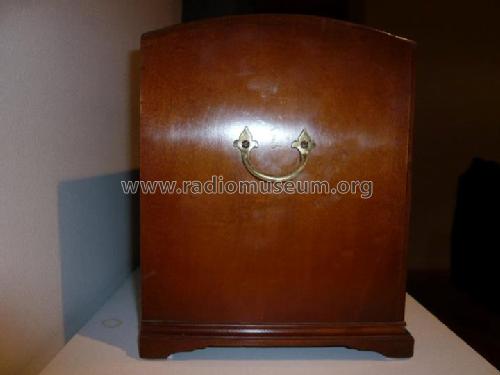

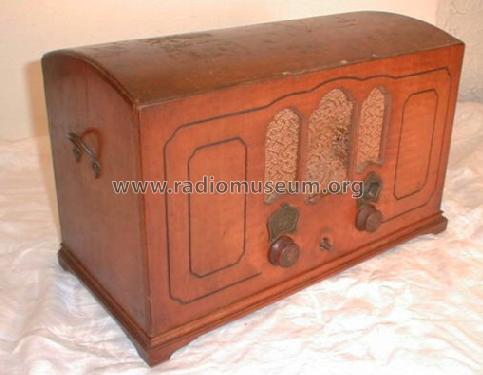

  • Chest type cabinet. Advertised as Model R-28C.

  • Mentioned in
  • -- Original prospect or advert
