Radiola 30-A AR-926, AR-906

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 54647

• • alternative name: RCA Manufacturing || Victor Talking Machine

• Picture

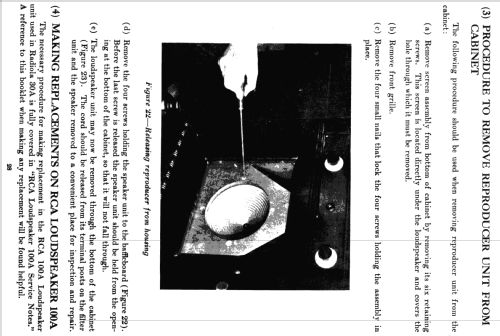

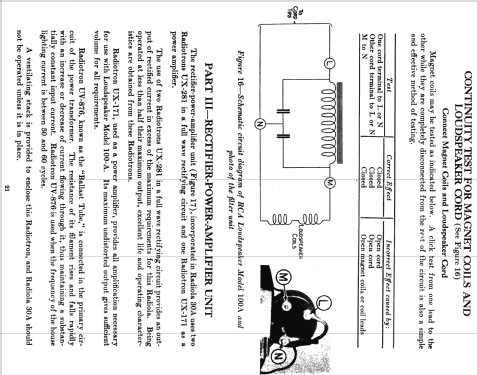

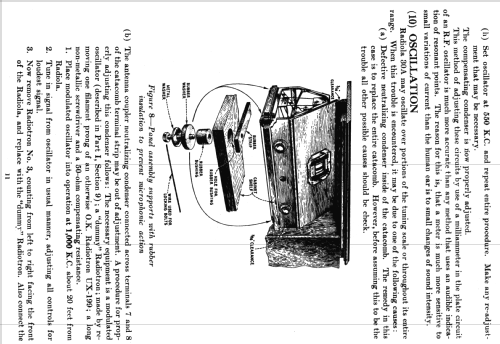

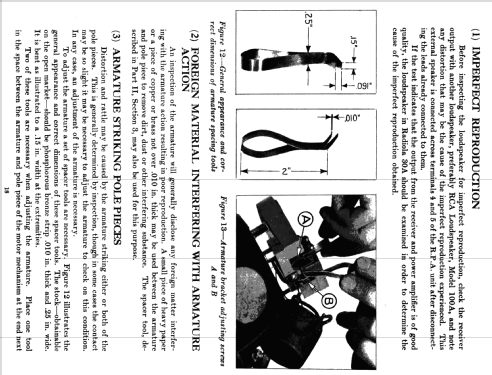

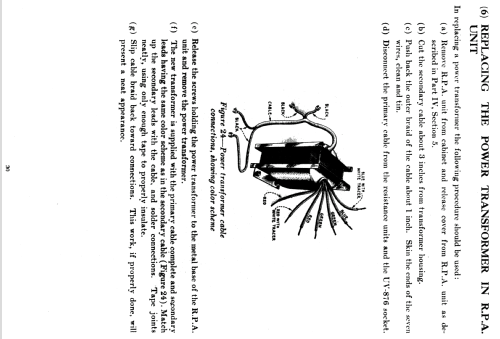

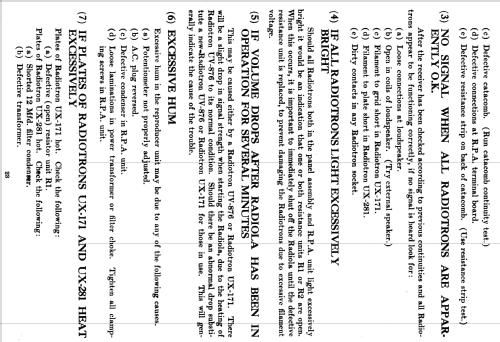

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• UX199 UX199 UX199 UX199 UX199 UX199 UX199 71A 81 81 UV876

• Main principle
• Superhet with RF-stage; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Magnetic loudspeaker (reed) generic. / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radiola 30-A AR-926, AR-906 - RCA RCA Victor Co. Inc.; New

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 731 x 1074 x 450 mm / 28.8 x 42.3 x 17.7 inch

• Notes

• Two power versions:
  60 cycle mains AR-926,
  25 cycle mains AR-906;
  see also Socket Power Unit AP754.

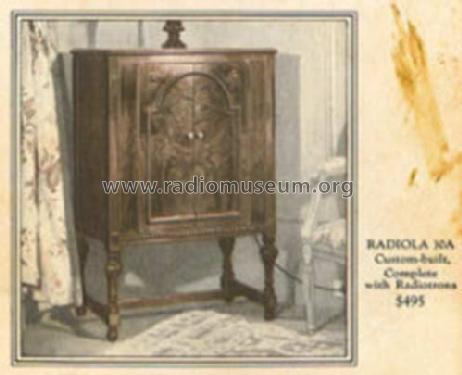

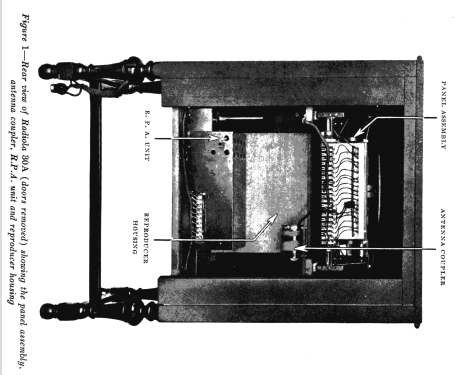

  Lowboy with doors and stretcher base. Employs the Radiola 28 superheterodyne and the new 100A cone speaker.

• Price in first year of sale
• 495.00 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Radio Manufacturers of the 1920's, Vol. 3 (p.43)

• Literature/Schematics (2)
• Radiola, the golden Age of RCA (pp.298-302)
