Radiola 82 Without Remote Control

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1930

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 54668

• • alternative name: RCA Manufacturing || Victor Talking Machine

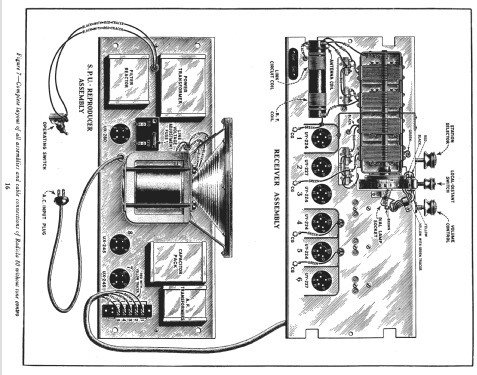

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 24A 27 24A 24A 24A 27 45 45 80

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz

• Tuned circuits
• 10 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radiola 82 [Without Remote Control] - RCA RCA Victor Co. Inc.; New

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 27.25 x 14 x 14 inch / 692 x 356 x 356 mm

• Notes
• There is a separate model that has a remote control. There were two versions of this model, one operating from 50-60 Cycle AC and the other operating from 25-40 Cycle AC.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• The Complete Price Guide to Antique Radios: Pre-War Consoles

• Literature/Schematics (1)
• RCA Victor Service Notes "Red Book" Series

• Literature/Schematics (2)
• Pre-War Consoles
