Radiola Grand

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1922

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 54623

• • alternative name: RCA Manufacturing || Victor Talking Machine

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• WD11 WD11 WD11 WD11

• Main principle
• TRF with regeneration

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries

• Material

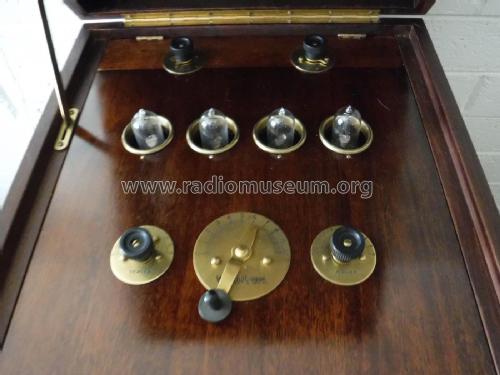

• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org
• Model: Radiola Grand - RCA RCA Victor Co. Inc.; New

• Shape

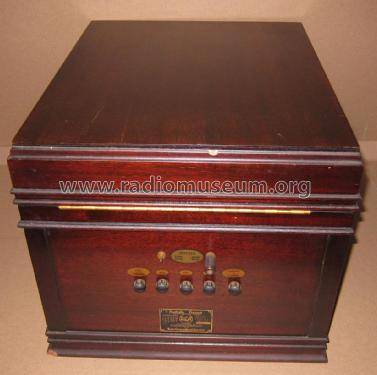

• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes
• Successor of the weak Aeriola Grand. Lowboy stand available.

• Price in first year of sale
• 350.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Radio Manufacturers of the 1920's, Vol. 3

• Literature/Schematics (2)
• Radio Broadcast, Jan. 1924. p. 265
