56X3 Ch= RC-1011 1st Production

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1945

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 53536

• • alternative name: RCA Manufacturing || Victor Talking Machine

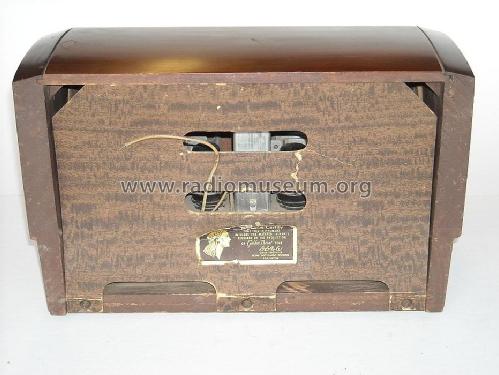

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SG7 12SK7 12SQ7 35L6GT 12J5GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 56X3 Ch= RC-1011 [1st Production] - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 14.5 x 8.3 x 8.2 inch / 368 x 211 x 208 mm

• Notes
• Wood cabinet. 1st Production.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition (RCA Victor Instruments Service Notes 1945)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Dat 8-48, set 1, folder 463-23)

• Literature/Schematics (2)
• RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data 1943-1946, Page 45)

• Other Models

• Here you find 5132 models, 3235 with images and 4167 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
