• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 53634

• • alternative name: RCA Manufacturing || Victor Talking Machine

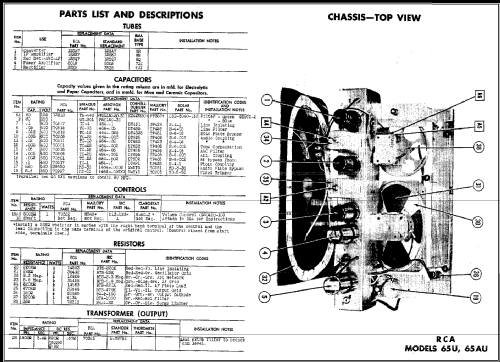

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 65U RC1017A, RC1017B - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 17.25 x 10.5 x 17.25 inch / 438 x 267 x 438 mm

• Notes
• Twelve 10-inch or ten 12-inch records are changed automatically. Sapphire-pickup.
  The RCA models 65U / 65AU are AC Operated Automatic Phono - Radio Combination Superheterodyne with Self Contained Loop Antenna.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Dat 2-47, set 14, folder 474-23)

• Literature/Schematics (2)
• RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data 1943-1946, Page 73)

• Literature/Schematics (3)
• Radio Retailing (Radio & Television R.) (March 1947 page 36.)
