56X11 Ch= RC-1023A

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 53533

• • alternative name: RCA Manufacturing || Victor Talking Machine

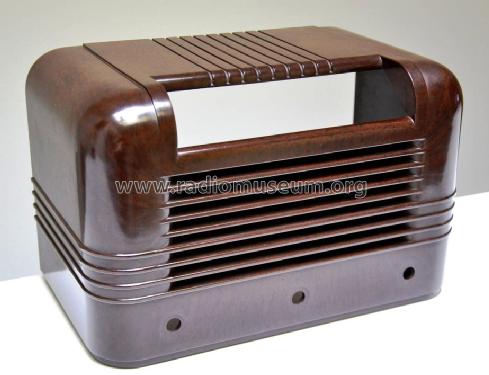

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SG7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 1 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 56X11 Ch= RC-1023A - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12.3 x 7.6 x 7.3 inch / 312 x 193 x 185 mm

• Notes

• Also with Edyn speaker.

  Model 56X11 was manufactured expressly for sale to members of the U.S. Armed Forces.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Literature/Schematics (1)
• RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data 1943-1946, Page 49)
