2C521 Ch= RC-1120-A not real

RCA (RCA Victor Co. Inc.); New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1952
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 53357
    • alternative name: RCA Manufacturing || Victor Talking Machine

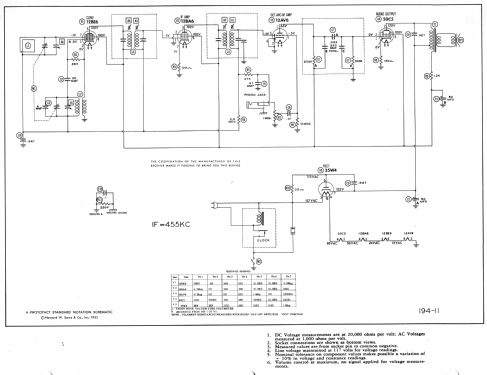

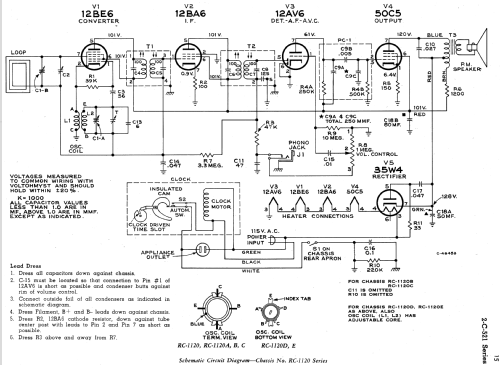

Click on the schematic thumbnail to request the schematic as a free document.

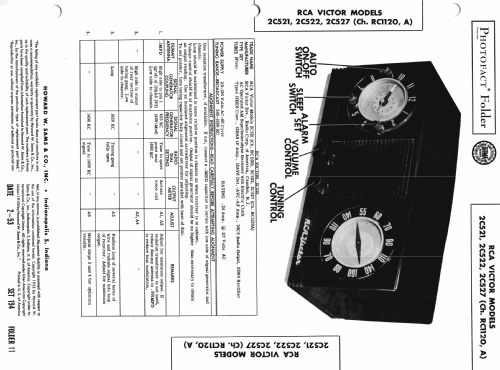

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 1.2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 2C521 Ch= RC-1120-A [not real] - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 11.8 x 6.1 x 5.5 inch / 300 x 155 x 140 mm
  • Notes
  • Caution!
    This model should not exist in reality. It is a hypothetical combination of case and chassis, by misreading of service documentation.
    There are three case variations: Model 2C521 is maroon, 2C522 is ivory, and 2C527 is of white color.
    There are two basic chassis: RC 1120(-1) for the maroon set, and RC1120-A for the ivory and white sets.

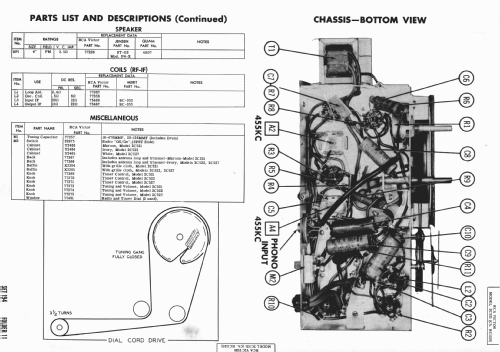

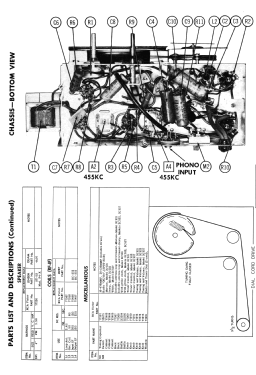

    By obviously technical reason the tube locations of the Demodulator/1st af and the output tube had been interchanged. The 50C5 was moved towards the speaker, and the 12AV6 closer to the IF-transformer L4.
    The revised chasses received new designations: RC1120 became RC1120-B, and RC1120-A became RC1120-C.
    That results in six different Model/Chassis combinations. Six more combinations could be derived theoretically by misinterpretation of service documentation. We list them with appropriate warning remark to avoid future errors.
    the real models are:
    - 2C521 Ch= 1120-1 (with or without suffix),
    - 2C521 Ch= 1120-B,
    - 2C522 Ch= 1120-A,
    - 2C522 Ch= 1120-C,
    - 2C527 Ch= 1120-A,
    - 2C527 Ch= 1120-C.
    Any other combination is not real.
    Unfortunately Beitman ignored the existence of models RC522 & RC527, and allocated all four Chassis numbers to RC521. That is obviously incorrect.
  • Net weight (2.2 lb = 1 kg)
  • 2.5 kg / 5 lb 8.1 oz (5.507 lb)
  • External source of data
  • Ernst Erb
