2-XF-932 "The Townley" Ch= RC-1121A

RCA (RCA Victor Co. Inc.); New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1952
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 53377
    • alternative name: RCA Manufacturing || Victor Talking Machine

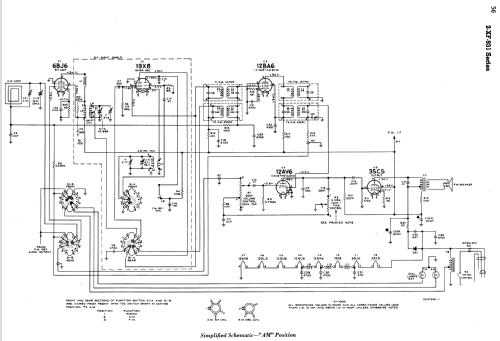

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 2-XF-932 "The Townley" Ch= RC-1121A - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 13.6 x 8.5 x 7.8 inch / 345 x 216 x 198 mm
  • Notes
  • The RCA 2-XF-932 is an AC operated 8 tube AM/FM receiver. AM Band Tuning Range: 540 - 1600kHz. FM Band Tuning Range: 88 - 108MHz. Cabinet color is Ivory. Uses Qty(1) PM 5.25" speaker. Has Selenium Rectifier. Has built-in loop antenna for AM and uses line cord for FM antenna with provisions for connecting an external antenna. Has external Phonograph input. Uses Qty(2) #47 dial lamps.
  • Net weight (2.2 lb = 1 kg)
  • 8 lb (8 lb 0 oz) / 3.632 kg
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 13, 1953
