• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 53379

• • alternative name: RCA Manufacturing || Victor Talking Machine

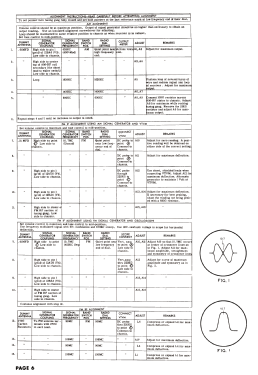

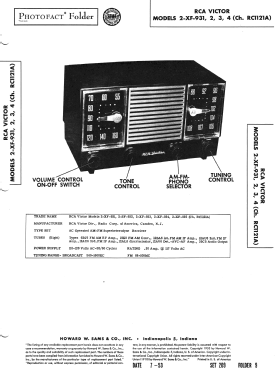

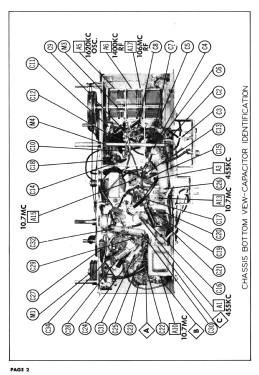

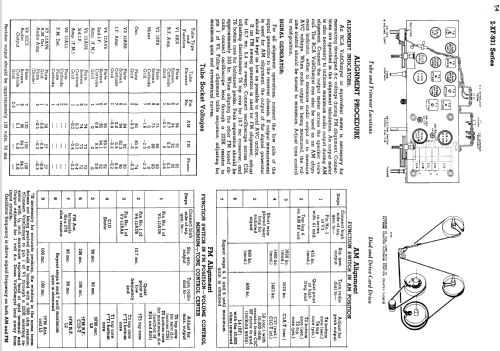

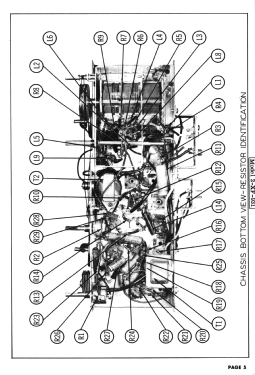

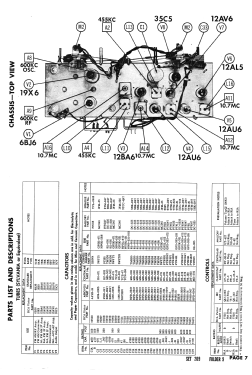

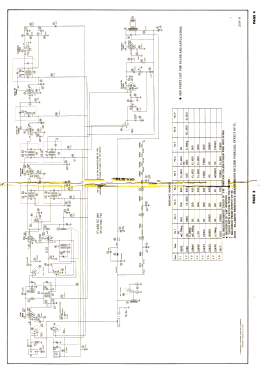

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6BJ6 19X8 12BA6 12AU6 12AU6 12AL5 12AV6 35C5

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

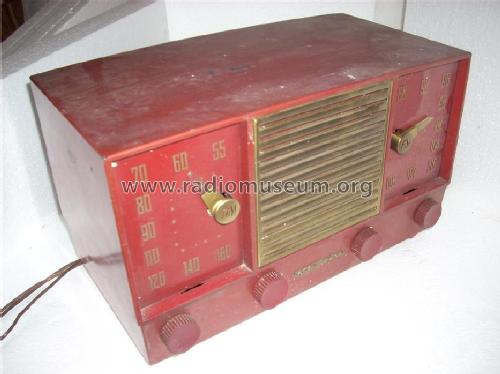

• Model: 2-XF-934 "The Townley" Ch= RC-1121A - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 13.6 x 8.5 x 7.8 inch / 345 x 216 x 198 mm

• Notes
• The RCA 2-XF-934 is an AC operated 8 tube AM/FM receiver. AM Band Tuning Range: 540 - 1600kHz. FM Band Tuning Range: 88 - 108MHz. Cabinet color is Red. Uses Qty(1) PM 5.25" speaker. Has Selenium Rectifier. Has built-in loop antenna for AM and uses line cord for FM antenna with provisions for connecting an external antenna. Has external Phonograph input. Uses Qty(2) #47 dial lamps.

• Net weight (2.2 lb = 1 kg)
• 8 lb (8 lb 0 oz) / 3.632 kg

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 13, 1953

• Literature/Schematics (1)
• Rider's Perpetual, Volume 23 (last) = covering up to 1954

• Literature/Schematics (2)

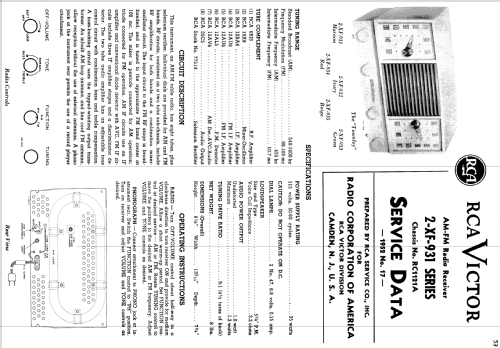

• RCA Victor Service Notes "Red Book" Series (Volume VIII 1952, Page 53)
