T80 Ch= RC-416A

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 54797

• • alternative name: RCA Manufacturing || Victor Talking Machine

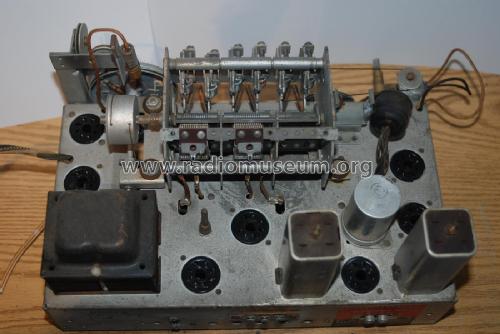

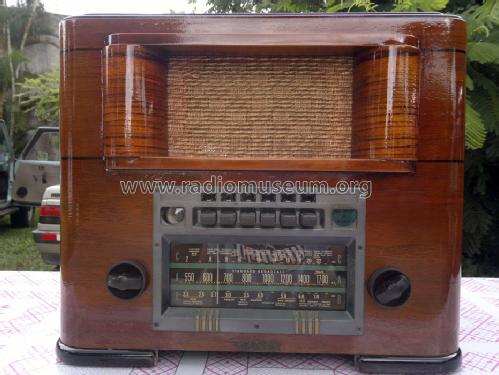

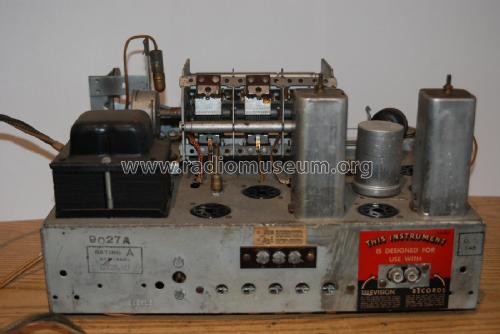

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6SA7 6SK7 6SQ7 6SF5 6U5 or 6G5 6F6G 6F6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: T80 Ch= RC-416A - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 16.5 x 14 x 9.75 inch / 419 x 356 x 248 mm

• Notes
• This model has 3 power supply ratings:
  Rating A...105-125V, 50-60 Cycles
  Rating B...105-125V, 25-60 Cycles
  Rating C...100-130;140-160;195-250V, 40-60 Cycles


• Net weight (2.2 lb = 1 kg)
• 22 lb (22 lb 0 oz) / 9.988 kg

• Price in first year of sale
• 49.95 USD

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Machine Age to Jet Age II (+ Beitman 1939)

• Literature/Schematics (2)
• RCA Victor Service Notes "Red Book" Series
