46X24 Ch= RC461

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 53475

• • alternative name: RCA Manufacturing || Victor Talking Machine

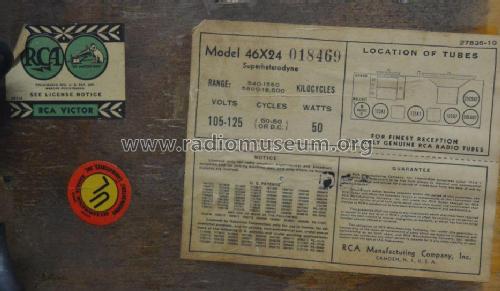

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 1.1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 46X24 Ch= RC461 - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 16 x 10.25 x 7.375 inch / 406 x 260 x 187 mm

• External source of data
• Ernst Erb

• Source of data
• Table Top Radios Vol. 1 Stein 98

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 02, 1939

• Literature/Schematics (2)
• RCA Victor Service Notes "Red Book" Series
