• Year
  • 1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 54884
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
  • Power out
  • 3.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: V-101 Ch= RC-540 - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 18.5 x 12 x 14 inch / 470 x 305 x 356 mm
  • Net weight (2.2 lb = 1 kg)
  • 22.5 lb (22 lb 8 oz) / 10.215 kg
  • Price in first year of sale
  • 39.95 $
  • External source of data
  • Ernst Erb

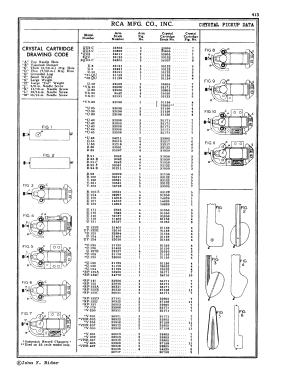

  • Circuit diagram reference
  • Rider's Perpetual, Volume 12 = ca. 1941 and before
