VHR207 Ch= RC-547

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 54935

• • alternative name: RCA Manufacturing || Victor Talking Machine

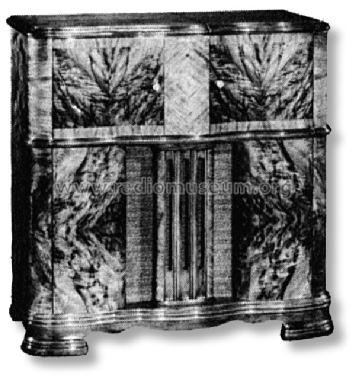

• Picture

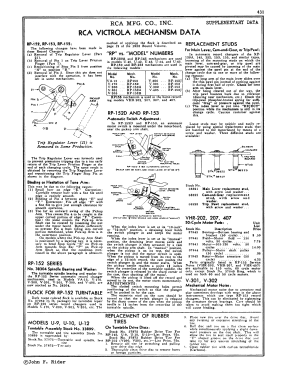

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6SK7 6SA7 6Q7 6SK7 6U5 or 6G5 12K7GT 6SJ7 6H6 6F6G 6F6G 5U4G

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Details
• Recording phonogr.-Disc Recorder

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: VHR207 Ch= RC-547 - RCA RCA Victor Co. Inc.; New

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 35 x 36 x 17.125 inch / 889 x 914 x 435 mm

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Mentioned in
• Guide to Old Radios

• Literature/Schematics (1)
• Pre-War Consoles

• Literature/Schematics (2)
• RCA Victor Service Notes "Red Book" Series
