• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 53517

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1T4 1U5 3S4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1.5 & 67.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.12 W (unknown quality)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

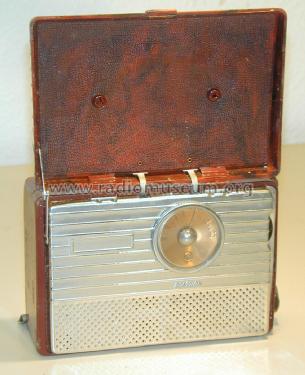

• Model: 54B3 Ch= RC-589UB [tube 1U5] - RCA RCA Victor Co. Inc.; New

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 6.5 x 3.2 x 4.2 inch / 165 x 81 x 107 mm

• Notes

• Red
  2" x 3" PM elliptical speaker.

  The 2nd production run employed a 1U5 instead of 1S5.

• Net weight (2.2 lb = 1 kg)
• 3.25 lb (3 lb 4 oz) / 1.476 kg

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 6, 1946

• Mentioned in
• Collector's Guide to Antique Radios (6th edition)

• Literature/Schematics (1)
• Rider's Perpetual, Volume 15 = 1947 and before

• Literature/Schematics (2)

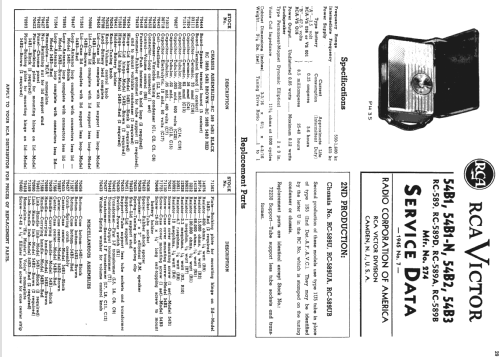

• RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data 1943-1946, Page 29)

• Literature/Schematics (3)
• Rider's Perpetual, Volume 18 = covering late 1947 to early 1948 (changes 18-9)
