54B6 Ch= RC-589UE
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 53520
-
- alternative name: RCA Manufacturing || Victor Talking Machine

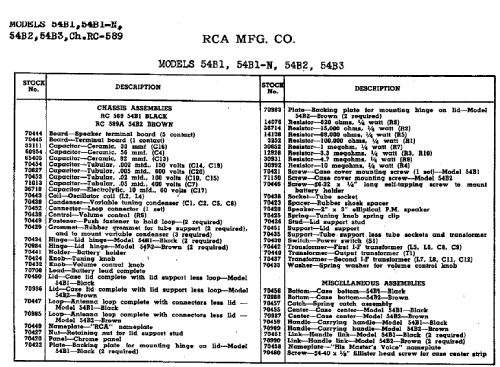

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1.5 & 67.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.05 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 54B6 Ch= RC-589UE - RCA RCA Victor Co. Inc.; New
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 6.5 x 3.2 x 4.2 inch / 165 x 81 x 107 mm
- Notes
- Similar to 54B1, 2nd run, but ivory color. Tan handle. Uses 2" x 3" elliptical speaker.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 21, Copyright 1950
- Mentioned in
- Radio Retailing (Radio & Television R.) (May 1947 page 35.)
- Literature/Schematics (1)

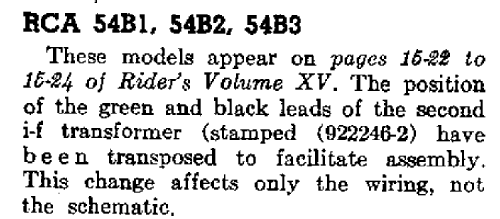

- Rider's Perpetual, Volume 15 = 1947 and before
- Literature/Schematics (2)
- RCA Victor Service Notes "Red Book" Series
