• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 54404

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6G 35Z5G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 1.25 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

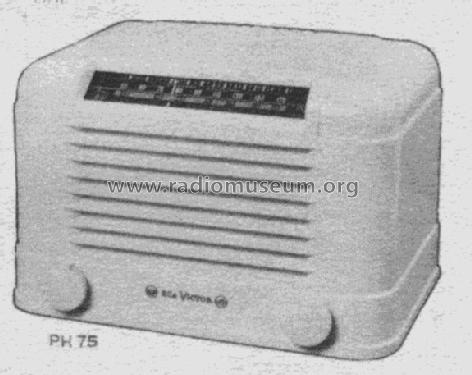

• Model: Q10-2 Ch= RC-594C - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 10.25 x 6.75 x 6 inch / 260 x 171 x 152 mm

• Notes
• Operates from DC or 40-100Hz AC.

• Net weight (2.2 lb = 1 kg)
• 6.25 lb (6 lb 4 oz) / 2.838 kg

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Literature/Schematics (1)

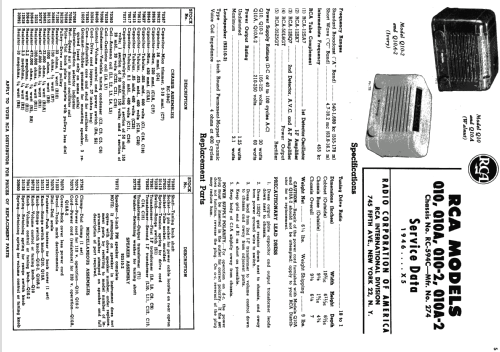

• RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data 1943-1946, Page 5)
