Electrola RE-45 Victor
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1929/1930
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 54712
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Por cortesia de Eduardo Bernal.
Electrola RE-45 Victor (RE45)
Electrola RE-45 Victor (RE45)

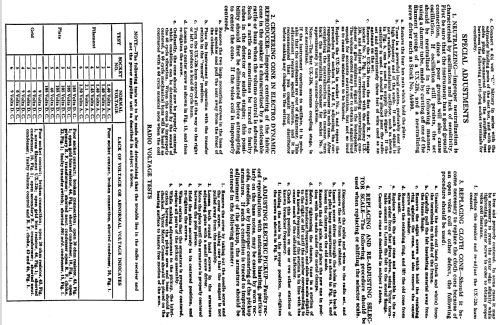

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- TRF without regeneration
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker

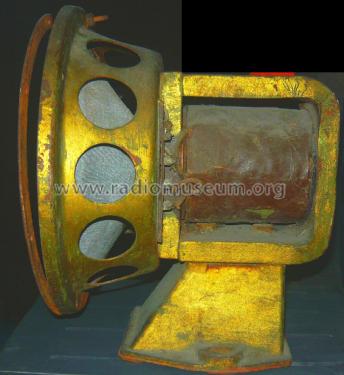

- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 9 inch = 22.9 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Electrola RE-45 Victor - RCA RCA Victor Co. Inc.; New
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 27 x 45.5 x 18.5 inch / 686 x 1156 x 470 mm
- Notes
-
All electric Radio (as in R32) with built in Electrola electric record player and amplifier with push-pull UX245 tubes, new for 1929.
Amplifier chassis = Victor 245.
- Price in first year of sale
- 275.00 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 3 = 1933 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Radio Manufacturers of the 1920's, Vol. 3
- Other Models
-
Here you find 5134 models, 3237 with images and 4171 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
Collections
The model Electrola is part of the collections of the following members.
Forum contributions about this model: RCA RCA Victor Co.: Electrola RE-45 Victor
Threads: 1 | Posts: 1
Dear Members: First of all receive all of you my best greetings. I need to replace an audio interstage transformer (completely cutted)of my old radio RCA Radiola RCA RE-45. The transformer couples the 27 tube (detector) with the 26 tube. On its primary receives the radio or pickup signal using a switch. The measured the impedance of the pickup. Is 17 ohm (at 1 Khz) (magnetic horseshoe pickup type). I checked the pickup and looks good. It has the rubber parts flexible, the coil is ok, the magnet is strong and the needle has good movement. The radio part is working great. I tested the radio part using other transformer that only has one primary. That is to say, I need to couple the pickup part and my apparatus will become completely to the life. I will really appreciate your help in order to have the specifications to build the transformer (there are some specialized places in my city but they need the indications, diameter of wire, number of wounds, core size, etc.). By the way, the size of core of the original transformer (cutted)is: 7,4 x 5,1 x 1,8 cm. The coil window is 1,8 x 1,8 cm.The diameter of wire is 0,07 mm. I am enclosing the radio schematic diagram. Sincerely yours, José Bustos CHILE
Attachments
- RCA RE-45 Schematic (138 KB)
José Bustos, 21.Mar.07
