- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1932
![perfect model](/img/sternRot.gif)
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 54717
-
- alternative name: RCA Manufacturing || Victor Talking Machine

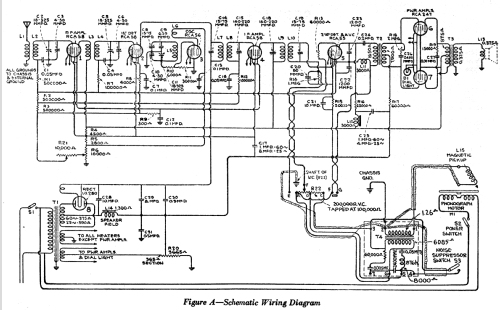

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

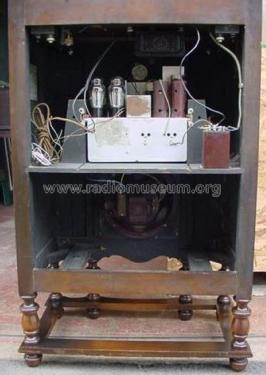

- Model: RE80 - RCA RCA Victor Co. Inc.; New
- Shape
- Console, Highboy (legs > 50 %).
- Notes
- The RCA model RE80 has a stretcher base cabinet. Scratch filter. Information from Alan Douglas for this model: "According to the "Red Book", the RCA service manual 1931/32, this RCA model RE-80 was announced November 15, 1932 with a list price of $ 125. Date of sample shipment was November 16, 1932 and first stock shipment was November 19, 1932. This model was produced 2292 times."
- Price in first year of sale
- 125.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference
- Rider's Perpetual, Volume 4 = ca. 1934 and before
- Literature/Schematics (1)
- RCA Victor Service Notes "Red Book" Series
