• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1924

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 54722

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• WD11 WD11 WD11 WD11

• Main principle
• TRF with regeneration

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

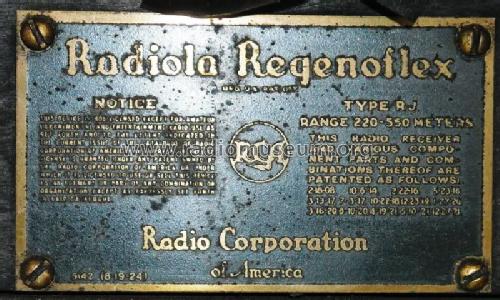

• Model: Radiola AR-817 Regenoflex - RCA RCA Victor Co. Inc.; New

• Shape

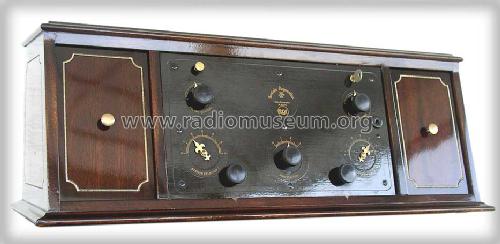

• Tablemodel, low profile (big size).

• Notes

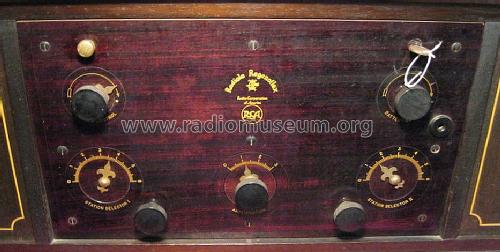

• A variation of the X in a cheaper cabinet. Two dials (primary tuning control knobs)

• Price in first year of sale
• 150.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Radio Manufacturers of the 1920's, Vol. 3

• Literature/Schematics (2)
• Radio Broadcast, Mar. 1924, p. 443
