RFC11B "The Taurus" Ch= RC-1210C

RCA (RCA Victor Co. Inc.); New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1964/1965
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 249536
    • alternative name: RCA Manufacturing || Victor Talking Machine

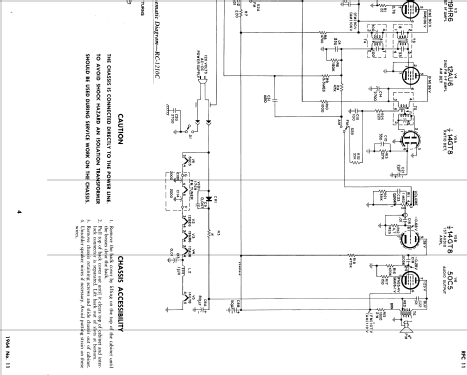

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • AC/DC-set / Either: AC 50 to 60 cycles, 105 to 125V or DC: 105 to 125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 2.25 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: RFC11B "The Taurus" Ch= RC-1210C - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 11.125 x 6.125 x 5.125 inch / 283 x 156 x 130 mm
  • Notes

  • The RCA RFC11B is an AC/DC operated 6 tube AM/FM receiver.  The AM frequency tuning range is 535 to 1620kHz and the FM frequency tuning range is 87.5 to 108.5MHz.  Uses silicon rectifier in power supply. Has built-in loop antenna for AM and uses line cord for FM antenna, with provisions for using external FM antenna.

    The following models use the same chassis and schematic:


    Model Cabinet
    RFC11A White/Blue
    RFC11B White/Covert Tan



  • Net weight (2.2 lb = 1 kg)
  • 4 lb (4 lb 0 oz) / 1.816 kg
  • Literature/Schematics (1)

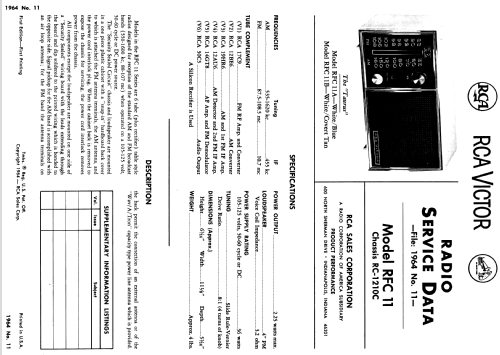

  • - - Manufacturers Literature (RCA Radio Service Data Datasheet - File 1964 No. 11)
