• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94480

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 50 to 60 cycles, 110 to 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: RGA-12Y Ch= RC-1213A - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 10.5 x 7 x 4 inch / 267 x 178 x 102 mm

• Notes

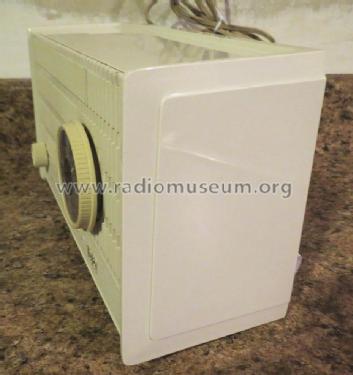

• The RCA RGA-12Y is an AC operated 5 tube BC band receiver.  The BC band range is 540 to 1600 kHz.  Has built-in loop antenna. Cabinet color is White.

  The following models use the same schematic and cabinet but have different cabinet colors:

  Model Number	Cabinet Color
  RGA-12Y	White
  RGA-12A	Blue
  RGA-12G	Green



• Circuit diagram reference
• Beitman Radio Diagrams Vol. 26, 1966

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 26, 1966 (Page 120)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
