• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94590

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: RHC-33W Ch= RC-1220A - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Notes

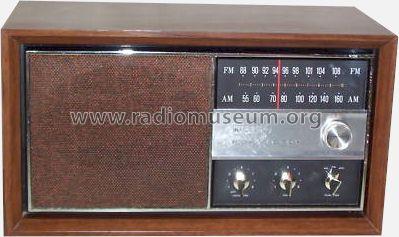

• RCA Victor Table Top Solid State AM-FM Radio Model RHC33W Walnut.
  Tuning Range: AM 540 - 1600 kHz, FM 88 - 108 MHz
  AFC
  Power Consumption 10 Watts.


• Circuit diagram reference
• Beitman Radio Diagrams Vol. 26, 1966

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.

• Other Models

• Here you find 5134 models, 3237 with images and 4174 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
