• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1966 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 179127

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• unknown_Tube

• Number of Transistors
• 9

• Semiconductors
• SE4002 SE4002 SE4002 SE4002 SE4002 SE4002 SE4002 2N1526

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Various materials

• from Radiomuseum.org

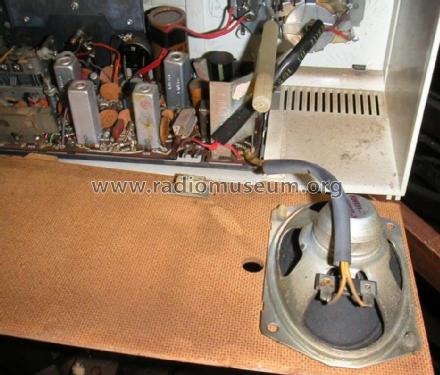

• Model: RHS-33A ch= RC-1228D - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes
• RH33A = White/Blue
  RH33E = White/Black
  RH33T = White/Brown

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (SET 878, Date 4-67, Folder 9)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
