Crestwood 612V3 Ch= RK-121 RS-123
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 53605
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Aus RCA-Werbung.

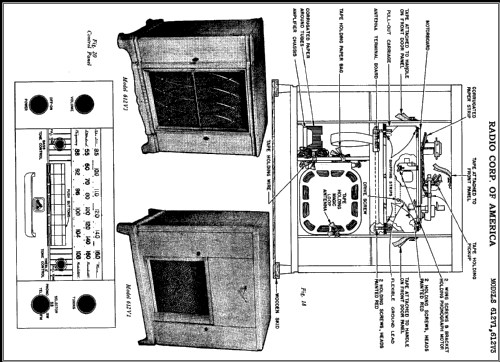

SAMS Photofact
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Power out
- 10 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Crestwood 612V3 Ch= RK-121 RS-123 - RCA RCA Victor Co. Inc.; New
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 9 x 17.5 x 6 inch / 229 x 445 x 152 mm
- Notes
- Radio chassis RK-121, Amp.chassis RS-123. Case in mahogany, walnut veneers or in modern blond.
See also Rider's Perpetual, Volume 20
Uses record changer RP176.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios (7th Edition)

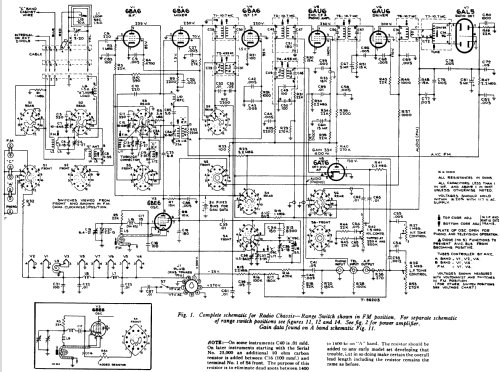

- Circuit diagram reference
- Rider's Perpetual, Volume 17 = 1948 and before
- Mentioned in
- Radio Retailing (Radio & Television R.) (November 1946 page 41. September 1947 page 47.)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 17, Folder 477-27)
- Literature/Schematics (2)
- RCA Victor Service Notes "Red Book" Series
