- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1968 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 242790
-
- alternative name: RCA Manufacturing || Victor Talking Machine

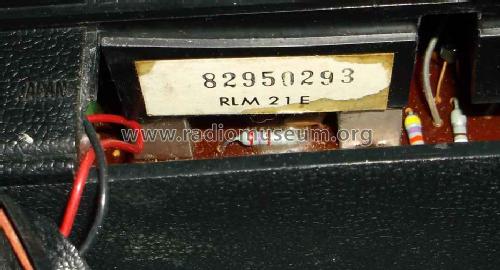

New pic of label for RCA portable
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / AA: 4 x 1.5 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- Power out
- 0.5 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: RLM21E - RCA RCA Victor Co. Inc.; New
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 8.5 x 2.5 x 7.25 inch / 216 x 64 x 184 mm
- Notes
-
All transistor portable. Colour: black.
- Net weight (2.2 lb = 1 kg)
- 2 lb 0 oz (2 lb) / 0.908 kg
- Mentioned in
- Photofact TSM Transistor Radio Series SAMS (TSM-92, Date 09-1968)
- Author
- Model page created by William Roadman. See "Data change" for further contributors.
