- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1940/1941
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 54728
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Power type and voltage
- Alternating Current supply (AC) / 110, 60 Hz. Volt
- from Radiomuseum.org
- Model: RP-152 - RCA RCA Victor Co. Inc.; New
- Notes
- Automatic Record Player. Type Pickup = Crystal. Impedance = 100,000 ohms at 1,000 Hz. Average Output Voltage = 1.5 Volts across 0.5 megohm at 1,000 Hz. Record Capacity Eight 10-inch or seven 12-inch Records.
- External source of data
- Ernst Erb
- Circuit diagram reference

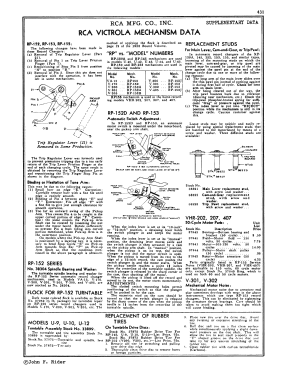

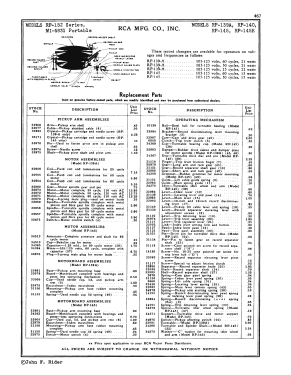

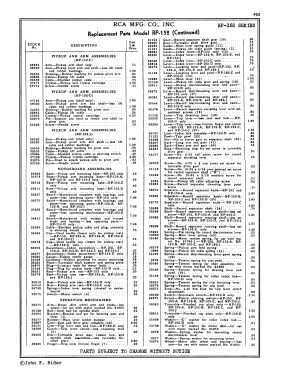

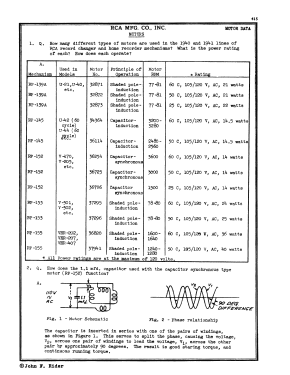

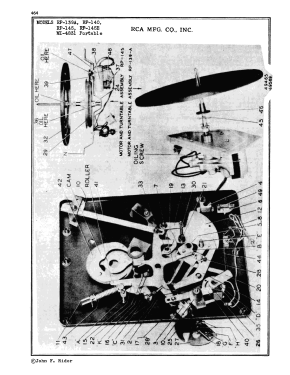

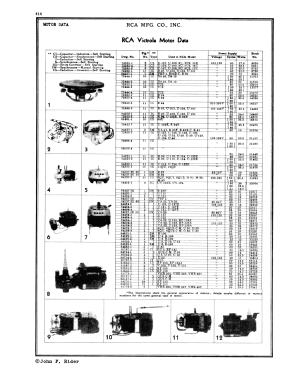

- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Literature/Schematics (1)

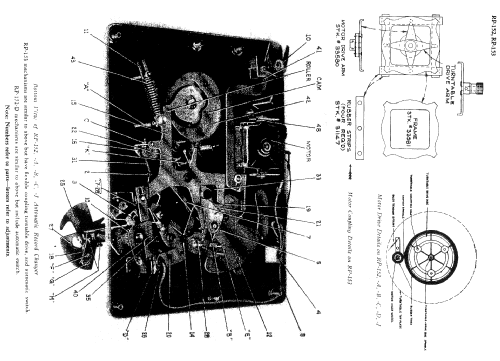

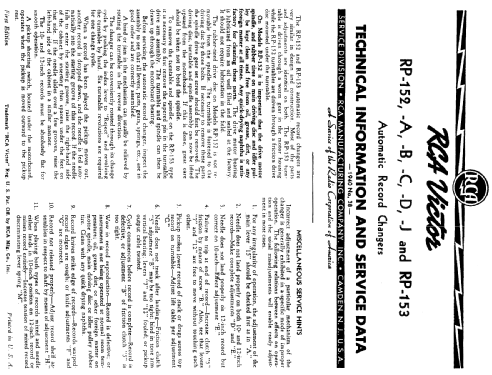

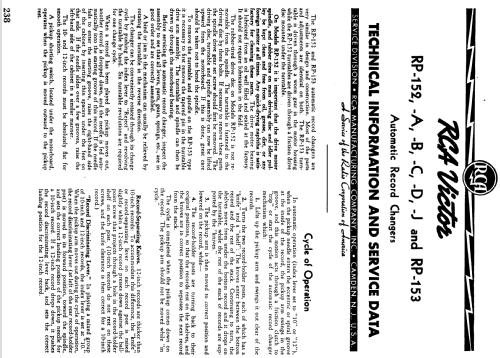

- RCA Victor Technical Information and Service Data, 1940, First Printings, Publication Nos. 34 & 38.
