• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1972/1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 232557

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

• Number of Transistors

• Semiconductors
• 2SA102 2SA101 2SB175 2SB175 2SB176 2SB176

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: RZG-101J - RCA RCA Victor Co. Inc.; New

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 70 x 108 x 33 mm / 2.8 x 4.3 x 1.3 inch

• Notes

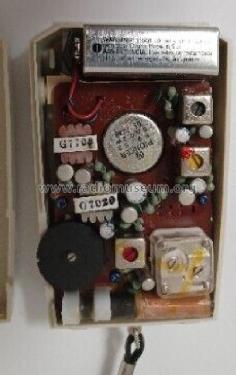

• The RCA RZG 101J is a battery operated 6 transistor AM Pocket Transistor Radio.  Uses Qty(1) 9V battery.  Has built-in ferrite rod antenna and push-pull output stage.  Also has earphone jack that disconnects the speaker for private listening and wrist strap for easy carrying.

• Literature/Schematics (1)

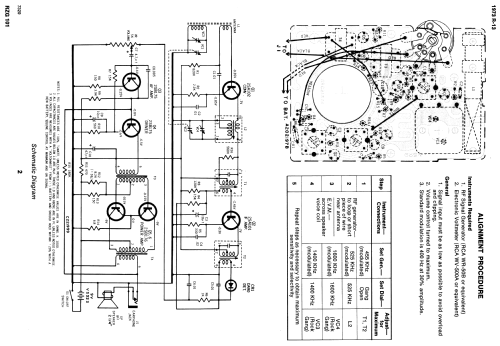

• - - Manufacturers Literature (RCA Radio Service Data 1973 R-13)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
