• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 158576

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• 6CB6 6X8 6BA6 6AU6 6AU6 6AL5 6AV6 6AL7GT 6CG7 6CG7 6CG7 6V6GT 6V6GT 5AS4A

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: SHC3 Ch= RC-1168C - RCA RCA Victor Co. Inc.; New

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• The RCA Model SHC3 is an AC operated 14 Tube FM-AM Receiver with 4 Speed Automatic Record Changer.

• Literature/Schematics (1)

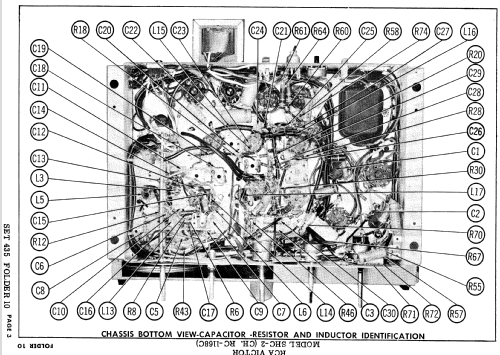

• Photofact Folder, Howard W. SAMS (Date 3-59, Set 435, Folder 10)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
