• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1957 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 84568

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6AV6 6CG7 6V6GT 6V6GT 5Y3GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 11 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

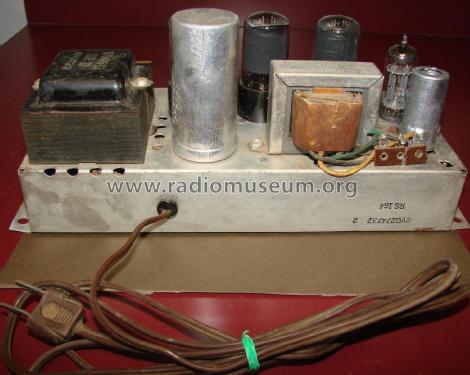

• Model: SHF-6 Ch= RS-164 - RCA RCA Victor Co. Inc.; New

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• RCA Victor model SHF6 is an AC operated phono amplifier with 4 speed automatic record changer. Mono, with push-pull output stage.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 18, 1958

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 395 Folder 11 dated 4-58)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
