• Year
  • 1959
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 72246
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 125 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • from Radiomuseum.org
  • Model: SHP14 Ch= RS-175A - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

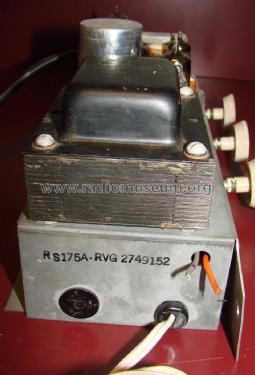

  • The RCA Model SHP14 is an AC operated 5 Tube Stereo Phono Amplifier with 4 Speed Automatic Record Changer.
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 19, 1959
