SW3 Converter -batt.
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1933
- Category
- Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
- Radiomuseum.org ID
- 82039
-
- alternative name: RCA Manufacturing || Victor Talking Machine

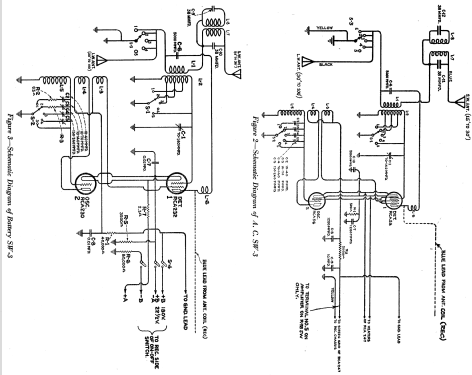

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- Superheterodyne (common)
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: SW3 Converter [-batt.] - RCA RCA Victor Co. Inc.; New
- Shape
- Chassis only or for «building in»
- Notes
- 4 wavebands: 49 m, 31 m, 25 m, 19 m. To be used with standard broadcast receivers.
- Literature/Schematics (1)
- RCA Victor Service Notes "Red Book" Series
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
