- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 54804
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 460 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 200-250; 140-160 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Power out
- 2.25 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: T9-8 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 15 x 21 x 9.5 inch / 381 x 533 x 241 mm
- Notes
- The input power for this radio as shipped from the factory is 200-250V. By shorting a resistor in the chassis, the input voltage range may be reduced to 140-160V.
- Net weight (2.2 lb = 1 kg)
- 27.5 lb (27 lb 8 oz) / 12.485 kg
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965

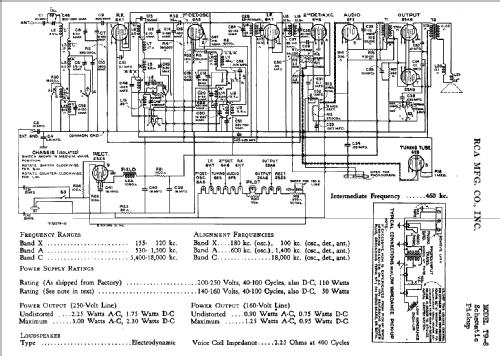

- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Literature/Schematics (1)
- RCA Victor Service Notes "Red Book" Series
- Literature/Schematics (2)
- Cathedral & Tombstone Radios (page 224.)
