- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 54805
-
- alternative name: RCA Manufacturing || Victor Talking Machine
RCA Advertise 1936
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 460 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110 ; 125 ; 150 ; 210 ; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

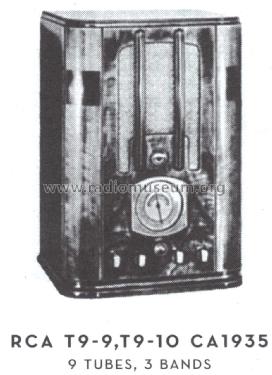

- Model: T9-9 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 16.5 x 22.8 x 11.9 inch / 419 x 579 x 302 mm
- Notes
- This radio comes with 3 power supply ratings: Rating A..105-125V, 50-60 Cycles Rating B..105-125V, 25-60 Cycles Rating C..100-130;140-160;195-250V, 40-60 Cycles
- Net weight (2.2 lb = 1 kg)
- 18 kg / 39 lb 10.4 oz (39.648 lb)
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Literature/Schematics (1)
- RCA Victor Service Notes "Red Book" Series
- Literature/Schematics (2)
- Cathedral & Tombstone Radios (page 224.)
