TA129 Ch= KCS41A-1 & Ch= RK135D

RCA (RCA Victor Co. Inc.); New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1949/1950
perfect model
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 231174
    • alternative name: RCA Manufacturing || Victor Talking Machine

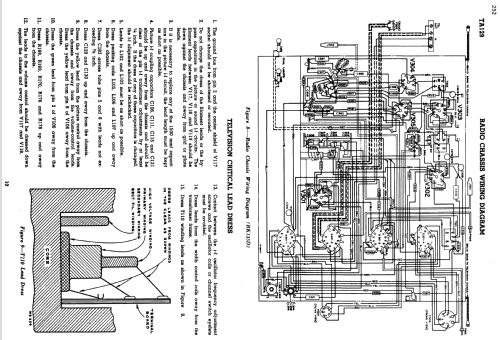

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 30
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
  • Power out
  • 6 W (max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: TA129 Ch= KCS41A-1 & Ch= RK135D - RCA RCA Victor Co. Inc.; New
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 37 x 38.75 x 22.75 inch / 940 x 984 x 578 mm
  • Notes

  • The RCA TA129 is an AC operated 30 tube combination BC/FM radio, phonograph and 12" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with picture tube 12LP4.  Cabinet color is Walnut, Mahogany or Oak. Has both a 45 RPM turntable and a 33 1/3, 78 RPM turntable.  The 45 RPM turntable used is model RP-168C, which holds up to ten 7 inch fine groove records.  The 33 1/3, 78 RPM turntable used in this model is 960282, which holds up to ten 12 inch or twelve 10 inch records.

    The BC band frequency range is 540 to 1600kHz.  The FM band frequency range is 88 to 108MHz.

  • Net weight (2.2 lb = 1 kg)
  • 183 lb (183 lb 0 oz) / 83.082 kg
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
